Angle (90°) live driven tool for BMT65 turrets, ER32, RPM=6000, RATIO 1:1

DTB65ER32ARunning out of stock

Angled live toolholder for radial machining on BMT65 turrets, featuring an ER32 collet chuck for precision tasks. CNCmarket.ca provides a 12-month warranty and free shipping within Canada.

CA$2,954.99

CA$3,283.32

Std. delivery incl. Crossed-out price = offline retail

3 pcs.in stock in Calgary (T2C 1Z6)

Product Attributes

Technical Description

Reviews

Coupling (connection) type

DOOSAN BMT, HAAS BMT

Collet standard

ER32

RPM

6000, 6000

Orientation

Axial

Coolant supply

External

Turret type

Gear ratio

1:1

Brand

EASYCUT

Item type

Live Tooling

Turret type:BMT65

Technical Description

The DTB65ER32A is a high-quality angled (90°) live driven tool designed for BMT65 turrets. Built to enhance the capabilities of CNC turning centers, it enables precise milling, drilling, and tapping operations while ensuring reliability and efficiency.

Key Specifications:

Turret Compatibility: Specifically engineered for BMT65 turrets.
Tool Orientation: 90° angled configuration for versatile and accessible machining operations.
Collet System: ER32 collet chuck for secure and adaptable tool holding.
Rotational Speed: Maximum speed of 6,000 RPM for efficient, high-speed machining.
Torque and Power:
Maximum torque: 70 Nm.
Maximum power: 10 kW.
Center Height: 72 mm, ensuring precise alignment during operation.
Distance to ER Nut Tip: 94 mm from the center of the tool slot for improved reach and flexibility.
Coolant System: Equipped with external coolant supply for effective heat management and prolonged tool life.
Rotation: Same direction as the machine spindle for seamless integration.
Gear Ratio: 1:1 for consistent and reliable performance.

Features & Benefits:

Durable Bearings: Preloaded angular contact ball bearings ensure superior precision and extended operational life.
High-Quality Gearing: Gleason spiral bevel gears with fully ground involute form provide smooth and efficient power transmission.
Superior Build: Manufactured in Italy, combining advanced engineering with premium materials for maximum durability.
Optimized Design: The 90° angle and specific tool slot-to-nut distance enable enhanced accessibility and flexibility in complex machining tasks.
Cost-Effective: Combines high performance with an exceptional price-to-quality ratio, catering to professional machining requirements.

The DTB65ER32A is a reliable and versatile solution for CNC professionals seeking to enhance their lathe’s functionality. Its robust construction and precision engineering make it an essential tool for demanding industrial applications.

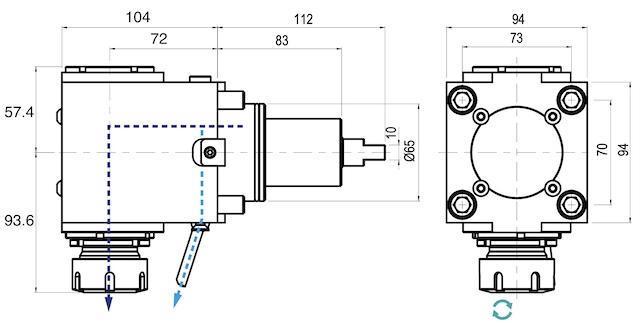

Details, mm:

Drawing DTB65ER32A
