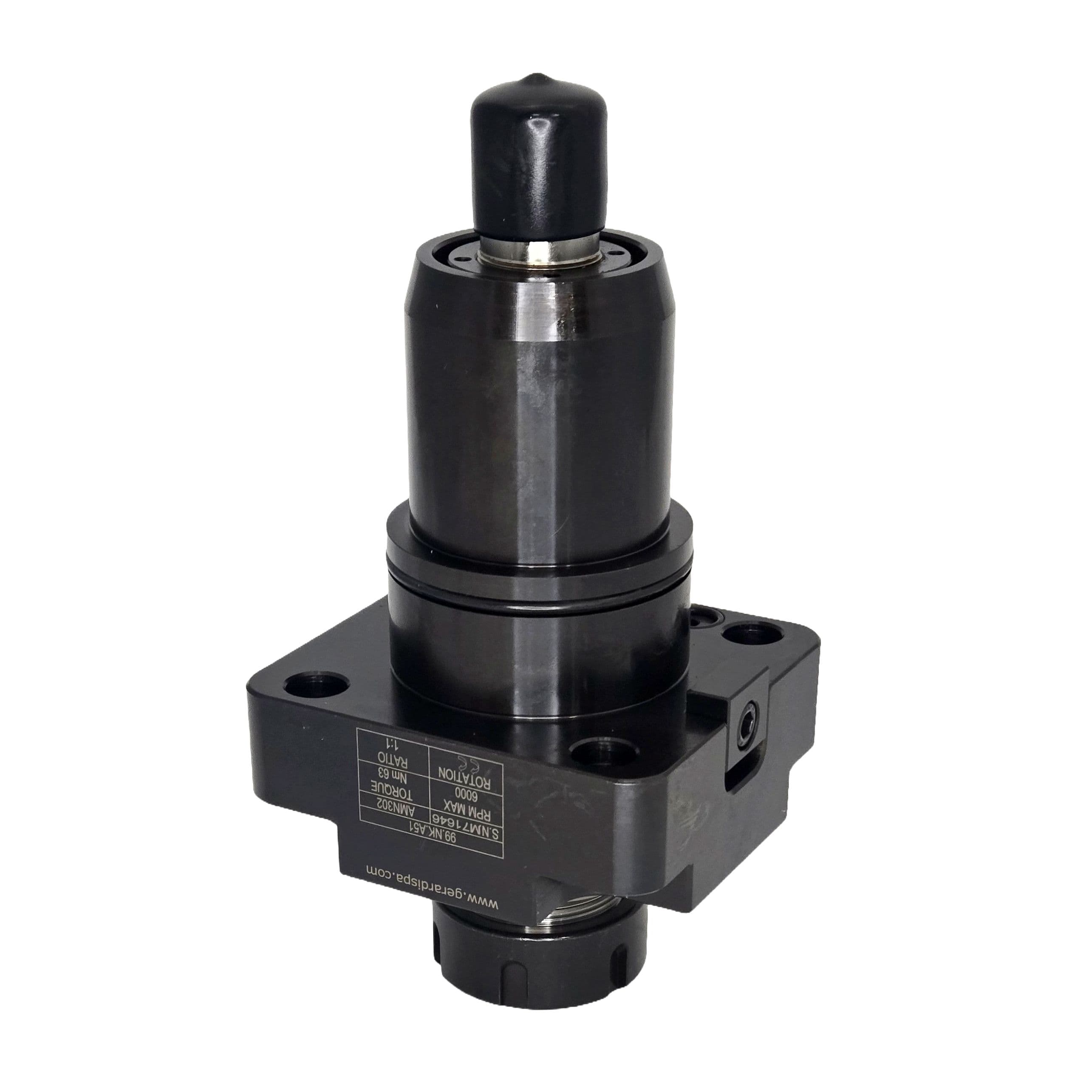

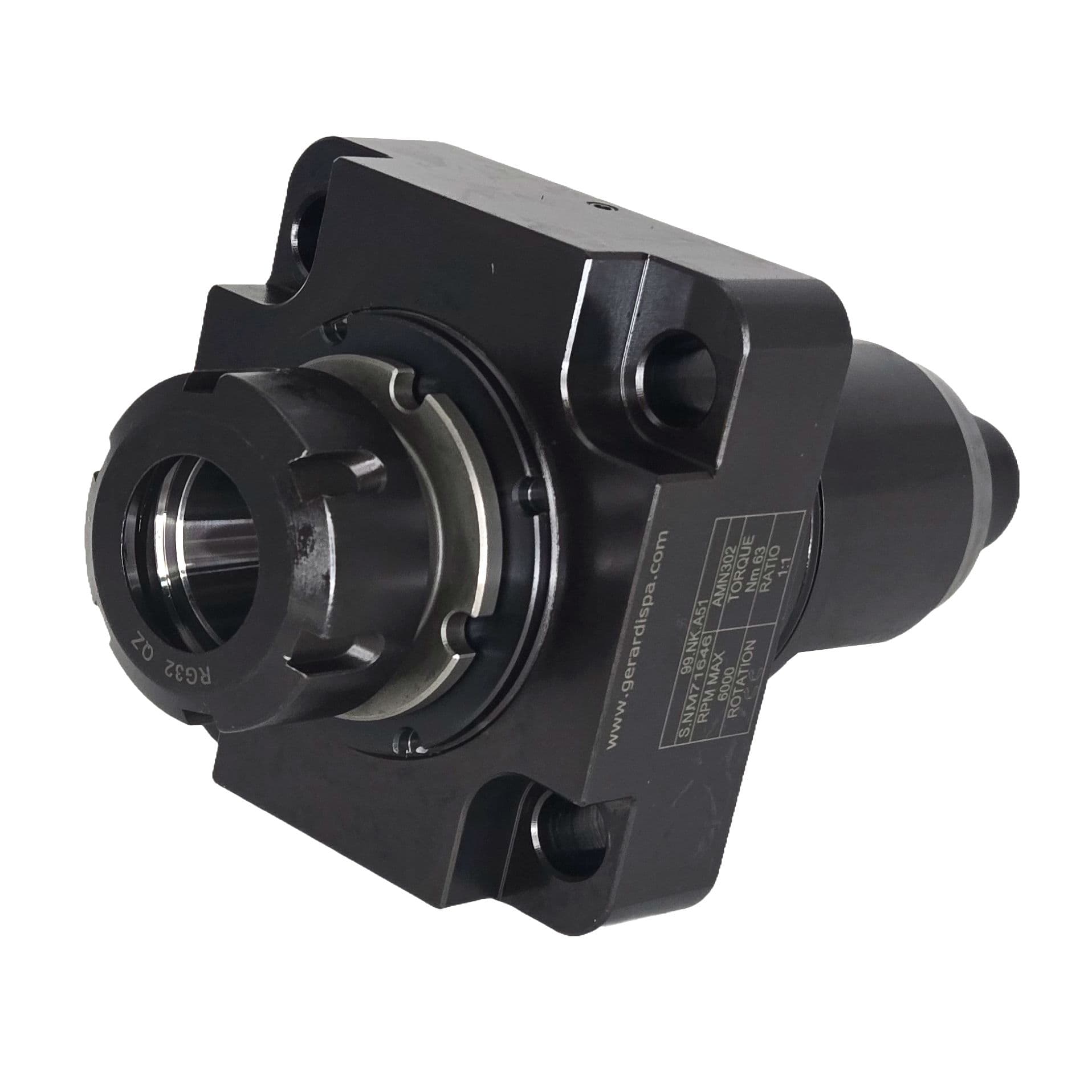

Straight (0°) live driven tool for BMT65 Nakamura turrets, ER32, RPM=6000

DTB65NTER32SRunning out of stock

Straight live driven toolholder designed for axial machining on BMT65 Nakamura turrets. Features an ER32 collet chuck for versatile tool applications. Backed by a 12-month warranty and free shipping within Canada from CNCmarket.ca.

CA$1,773.66

Std. delivery incl. Crossed-out price = offline retail

1 pcs.in stock in Calgary (T2C 1Z6)

Product Attributes

Technical Description

Reviews

Collet standard

ER32

RPM

6000

Torque, Nm

Coupling (connection) type

Coolant supply

External

Turret type

Gear ratio

1:1

Orientation

Radial

Brand

EASYCUT

Item type

Live Tooling

Coupling (connection) type:Nakamura-Tome BMT65

Technical Description

The DTB65NTER32S is a high-performance straight (0°) live driven tool designed specifically for BMT65 Nakamura turrets. Built for precision and durability, it enhances the milling, drilling, and tapping operations of CNC turning centers, eliminating the need for additional parts handling.

Key Specifications:

Turret Compatibility: Designed for BMT65 Nakamura turrets.
Collet System: ER32 collet chuck for versatile and secure tool holding.
Rotational Speed: Maximum speed of 6,000 RPM for high-efficiency machining.
Torque and Power: • Maximum torque: 63 Nm.
Maximum power: 10 kW.
Height: 78 mm, ensuring precise alignment and operational reliability.
Coolant System: External coolant supply for effective heat management and enhanced tool lifespan.
Rotation: Same direction as the machine spindle for seamless integration.
Gear Ratio: 1:1 for consistent and reliable performance.

Features & Benefits:

Precision Bearings: Preloaded angular contact ball bearings ensure superior accuracy and extended operational life.
Premium Gears: Gleason spiral bevel gears with fully ground involute form provide smooth and efficient power transfer
Italian Engineering: Manufactured in Italy, guaranteeing exceptional quality and craftsmanship.
Cost-Effective Solution: Combines high-quality performance with an excellent price-to-quality ratio for professional applications.

The DTB65NTER32S is the perfect choice for CNC professionals who demand reliability, precision, and versatility from their live driven tools. Its robust construction and advanced design make it an invaluable addition to your machining setup.

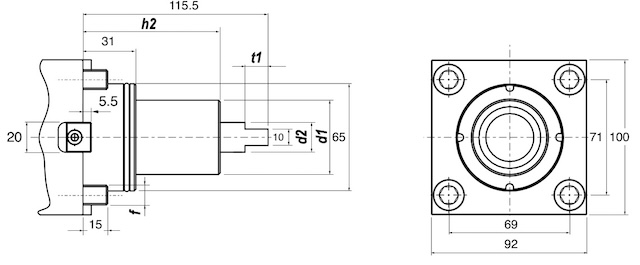

Details,mm:

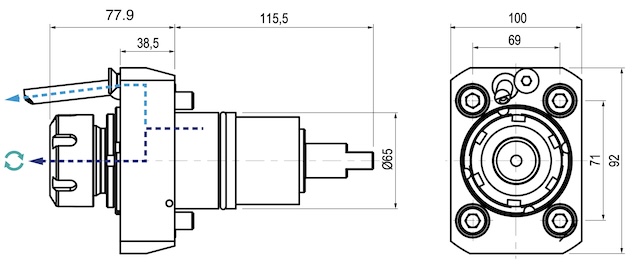

DTB65NTER32S Drawing
