Straight (0°) live driven tool for VDI40 turret with 117.55mm coupling, ER32, RATIO 1:1

Total discount 10%

Running out of stock

https://d2cl4d8boa23l5.cloudfront.net/storage/media/catalog_file/527/b74/257/dti40her32s-live-tooling-block-vdi40-haas.jpeg

https://d2cl4d8boa23l5.cloudfront.net/storage/media/catalog_file/27a/6d5/e18/dti40her32s-live-tooling-block-vdi40-haas_2.jpeg

Straight (0°) live driven tool for VDI40 turret with 117.55mm coupling, ER32, RATIO 1:1

DTI40HER32SRunning out of stock

Straight live driven toolholder for axial machining with VDI40 turrets and 117.55 mm coupling. Includes an ER32 collet chuck and advanced design for diverse CNC tasks. Backed by a 12-month warranty and free shipping within Canada from CNCmarket.ca.

CA$1,304.63

CA$1,449.59

Std. delivery incl. Crossed-out price = offline retail

3 pcs.in stock in Calgary (T2C 1Z6)

Product Attributes

Technical Description

Reviews

Collet standard

ER32

Coupling (connection) type

Torque, Nm

RPM

6000

Orientation

Axial

Coolant supply

External

Gear ratio

1:1

Turret type

Brand

EASYCUT

Item type

Live Tooling

Coupling (connection) type:HAAS 117.5

Technical Description

The DTI40HER32S is a precision-engineered straight (0°) live driven tool designed to optimize the performance of VDI40 turrets with a 117.55 mm HAAS coupling. This tool supports advanced milling, drilling, and tapping operations on CNC turning centers, eliminating additional parts handling and increasing operational efficiency.

Key Specifications:

Turret Compatibility: Designed for VDI40 turrets with a 117.55 mm HAAS coupling.
Collet System: ER32 collet chuck for secure and flexible tool holding.
Rotational Speed: Capable of reaching a maximum speed of 6,000 RPM for high-efficiency machining.
Torque and Power:
Maximum torque: 63 Nm.
Maximum power: 10 kW.
Height: 75 mm, ensuring precise alignment for reliable performance.
Coolant System: Equipped with an external coolant supply for efficient heat management and extended tool life.
Rotation: Same direction as the machine spindle for seamless integration.
Gear Ratio: 1:1 for consistent and stable operation.

Features & Benefits:

Precision Bearings: Preloaded angular contact ball bearings ensure exceptional accuracy and longevity in demanding applications.
High-Quality Gears: Gleason spiral bevel gears with fully ground involute form guarantee smooth and efficient power transfer.
Italian Craftsmanship: Manufactured in Italy, combining top-tier engineering with premium materials for durability.
Cost-Effective: Offers an outstanding price-to-quality ratio for professional-grade performance.

The DTI40HER32S is an ideal solution for CNC professionals seeking to enhance their turning centers’ capabilities with a reliable and high-performance live driven tool. Its precision design and robust construction make it indispensable for industrial applications.

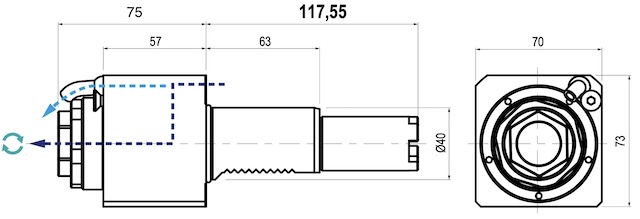

Details, mm:

DTI40HER32S Drawing
