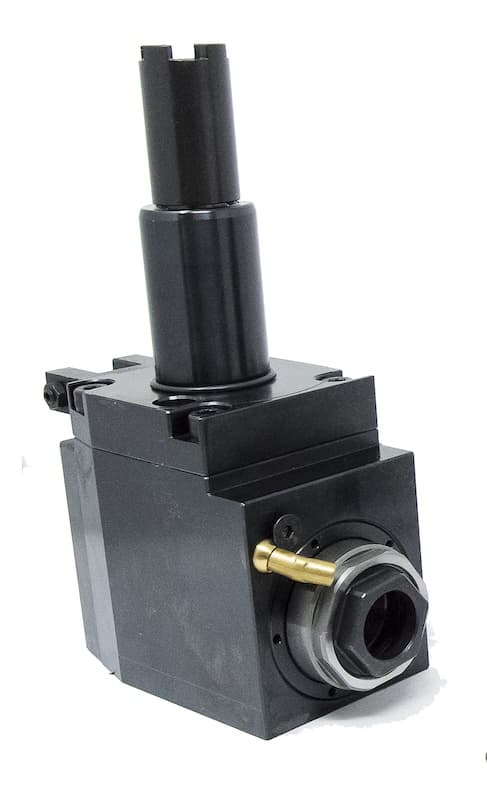

Angle (90°) live driven tool for VDI40 turret with 104.85mm HAAS coupling, ER32, RPM=6000

Made to order

https://d2cl4d8boa23l5.cloudfront.net/storage/media/catalog_file/34d/d0f/b54/dti40hxer32a.jpg

Angle (90°) live driven tool for VDI40 turret with 104.85mm HAAS coupling, ER32, RPM=6000

DTI40HXER32AMade to order

Angled live toolholder designed for radial machining on lathes with VDI40 turrets and 104.85 mm HAAS couplings. The ER32 collet chuck offers flexibility for milling, drilling, and threading. Includes 12-month warranty and free shipping within Canada from CNCmarket.ca.

CA$2,720.56

Std. delivery incl. Crossed-out price = offline retail

Product Attributes

Technical Description

Reviews

Collet standard

ER32

RPM

6000

Coupling (connection) type

Torque, Nm

Coolant supply

External

Gear ratio

1:1

Orientation

Radial

Turret type

Brand

EASYCUT

Item type

Live Tooling

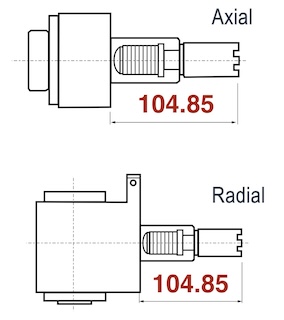

Coupling (connection) type:HAAS 104.85

Technical Description

The DTI40HXER32A is a robust and versatile angled (90°) live driven tool tailored for VDI40 turrets. It offers seamless integration with HAAS couplings (104.85 mm) and is designed to enhance the milling, drilling, and tapping capabilities of your CNC turning centers, eliminating additional handling steps while ensuring exceptional precision.

Key Specifications:

Turret Compatibility: VDI40 with 104.85 mm HAAS coupling.
Tool Orientation: 90° angled configuration for versatile machining operations.
Collet System: ER32 collet chuck, providing secure and adaptable tool holding.
Rotational Speed: Maximum speed of 6,000 RPM for efficient, high-speed machining.
Torque and Power: Maximum torque: 63 Nm.
Maximum power: 10 kW.
Center Height: 75 mm, precisely calibrated for optimal operation.
Coolant System: External coolant supply for efficient cooling and extended tool lifespan.
Rotation: Matches the machine spindle direction.
Gear Ratio: 1:1 for reliable and consistent power delivery.

Features & Benefits:

Enhanced Bearings: Equipped with preloaded angular contact ball bearings, ensuring precision and durability in demanding applications.
Premium Gears: Gleason spiral bevel gears with ground involute form provide smooth and efficient power transmission.
Italian Craftsmanship: Manufactured in Italy, combining superior engineering and high-quality materials.
Cost Efficiency: Offers a competitive price-to-quality ratio for professional-grade tools.

The DTI40HXER32A is the perfect solution for CNC professionals looking to expand their lathe’s functionality with a high-quality angled live driven tool. Its reliable performance and premium build make it a must-have for demanding industrial applications.

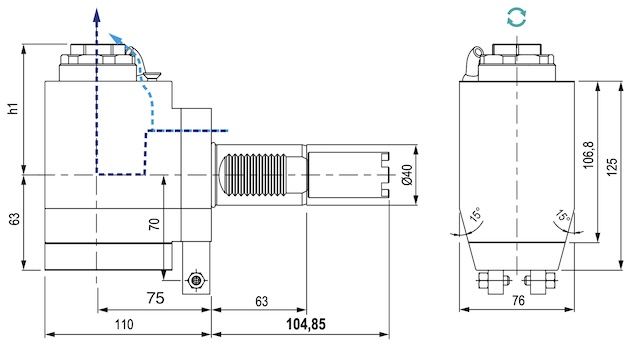

Details, mm:

DTI40HXER32A Drawing
