BMT65 ER32 Straight (0°) Live Tool Holder, Internal Nut, Made in China, Reach 65.3mm

Made to order

BMT65 ER32 Straight (0°) Live Tool Holder, Internal Nut, Made in China, Reach 65.3mm

Name: LTB65ER32S - BMT65 ER32 Straight (0°) Live Tool Holder, Internal Nut, Made in China, Reach 65.3mm
Brand: EASYCUT
SKU: LTB65ER32S
Price: 1039.49 CAD
Availability: InStock

LTB65ER32SMade to order

Internal lock nut instead of an external ER nut, for a compact tool stack. 65.3 mm from the turret face to the output face. External coolant. ER32 collets, clamping range 2-20 mm. Maximum torque 70 Nm, grease lubricated. Runout within 0.003 mm, 1:1 drive ratio. Collets and nut wrench sold separately. CNCmarket.ca provides a 12-month warranty.

CA$989.99 excl. taxes

Retail price as of 10.31.2026

Product Attributes

Technical Description

Reviews

Machine Brand

Accuway, DN Solutions, Doosan, Emag, Emco, Goodway, Hardinge, Hwacheon, Hyundai WIA, Jyoti, Leadwell, Romi, Samsung, Smart, Takisawa, Tongtai, Ecoca, Focus, Haas, Hurco, Johnford, Spinner, Victor, Wele

Tool Mounting

ER32

Turret Interface

BMT65

Distance to ER Nut Tip, mm

65.3

Live Tooling Type

Straight (0°)

Coolant supply

External

RPM

6000

Torque, Nm

Technical Description

Straight (0°) live tool holder for BMT65 turrets. Adds milling, drilling and tapping to a CNC turning centre without moving the part to a second machine.

The tool axis is in line with the turret bore — this holder has no centre-height offset. Its one defining dimension is the reach: 65.3 mm from the turret face to the output face.

The ER32 collet is clamped by an internal lock nut that sits inside the output face instead of a standard external ER nut. Nothing protrudes beyond the spindle nose, so the tool can work closer to the workpiece and the chuck. The nut is tightened and released with two hook spanners (size 55–62 shown): one holds the spindle, the other turns the nut, so no tightening torque is passed into the spindle bearings.

ER32 internal lock nut tightened with two hook spanners

Key Specifications

SKU: LTB65ER32S
Turret interface: BMT65, Ø65 mm pilot
Type: Straight (0°), axial output, in line with the turret bore
Tool mounting: ER32 collets, clamping range Ø2–20 mm
Collet clamping: internal lock nut, no external ER nut
Reach: 65.3 mm, turret face to output face
Maximum speed: 6,000 RPM
Maximum permitted torque: 70 Nm
Gear ratio: 1:1
Runout: within 0.003 mm
Coolant: external
Lubrication: grease packed — no oil line to connect
Weight: 4.2 kg
Origin: China

Machines with a BMT65 turret

Accuway · DN Solutions · Doosan · Ecoca · Emag · Emco · Focus · Goodway · Haas · Hardinge · Hurco · Hwacheon · Hyundai WIA · Johnford · Jyoti · Leadwell · Romi · Samsung · Smart · Spinner · Takisawa · Tongtai · Victor · Wele

Turret configuration varies between machine builds — confirm your turret type with us before ordering.

Collets and nut wrench are not included. CNCmarket.ca provides a 12-month warranty.

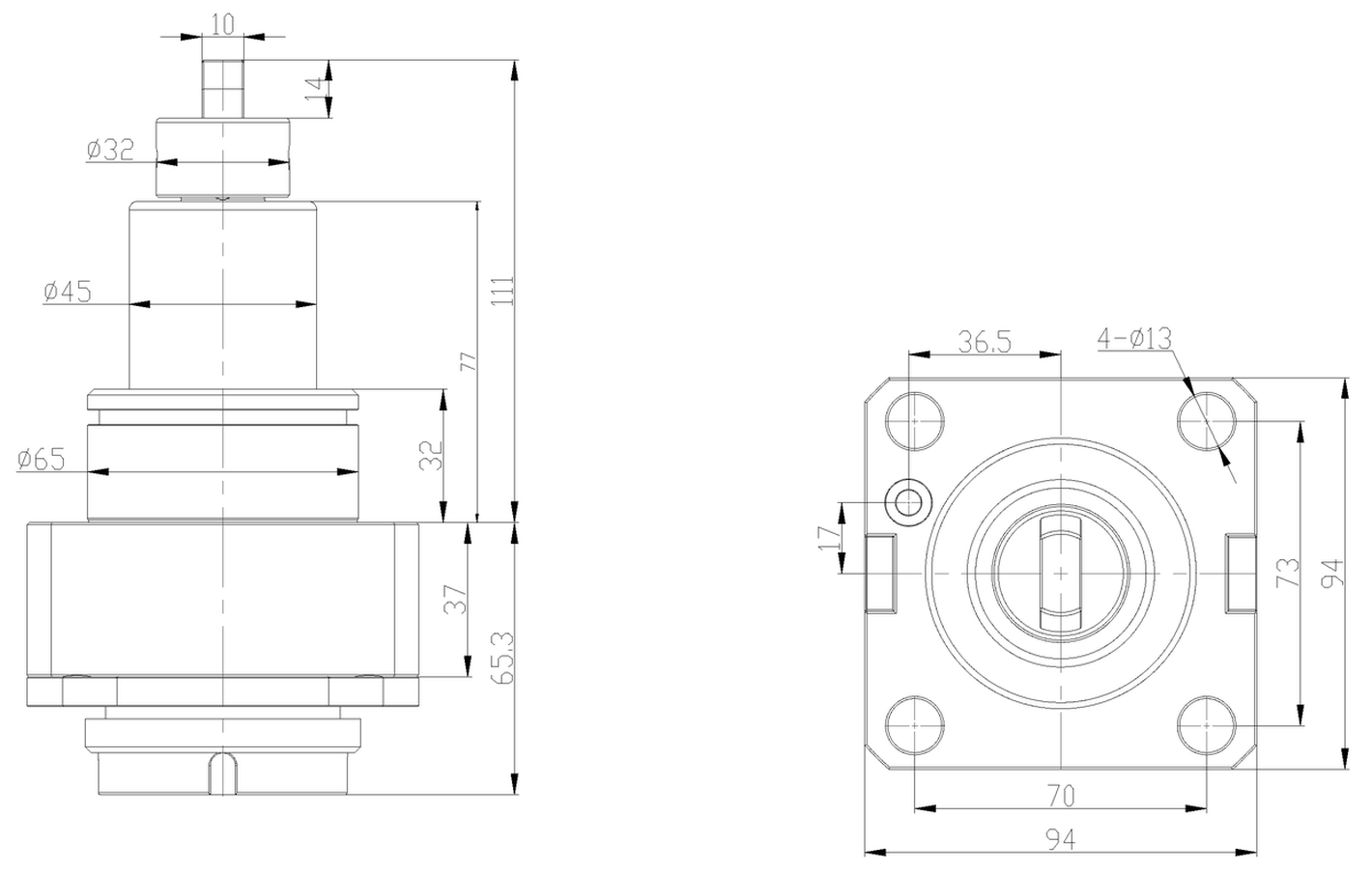

Details, mm:

LTB65ER32S Drawing
