Bolt On toolholder for boring bars, clamping capacity ø40mm, center height 30mm, bolt grid 45x80
Made to order

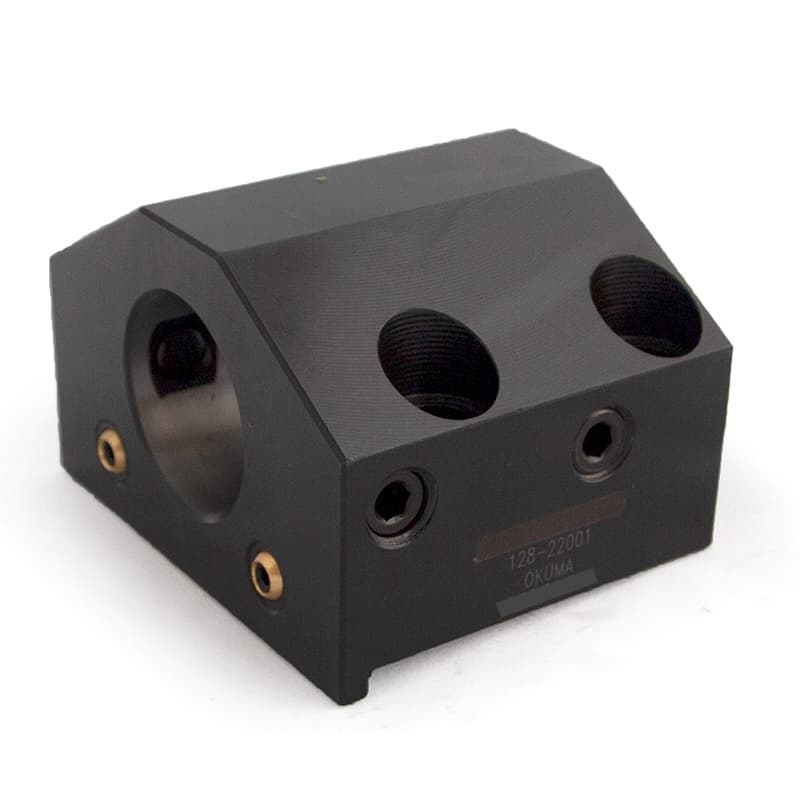

https://d2cl4d8boa23l5.cloudfront.net/storage/media/catalog_file/89b/3be/e73/128-22001.jpeg

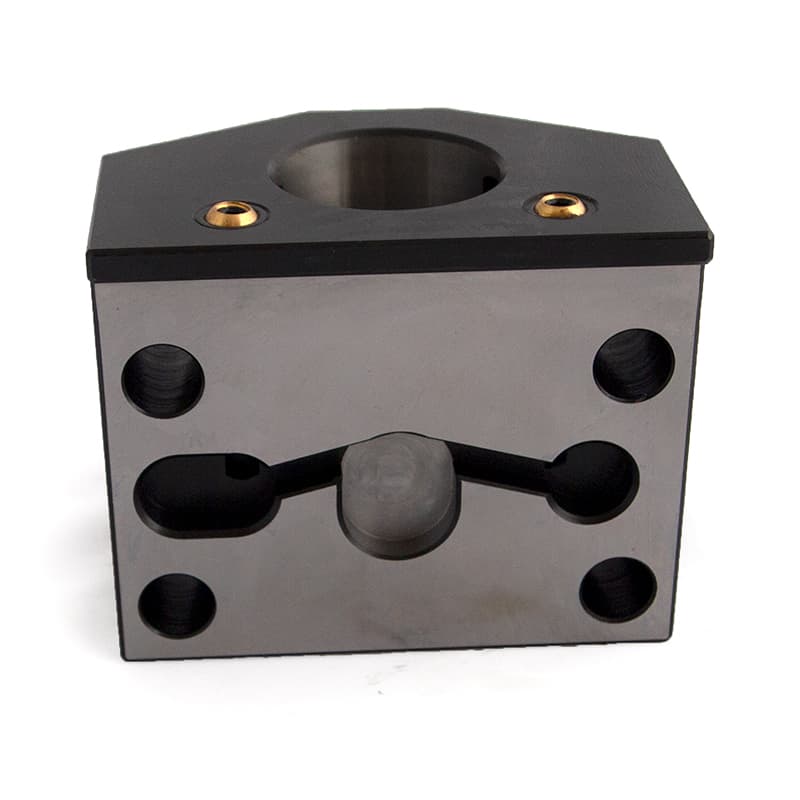

https://d2cl4d8boa23l5.cloudfront.net/storage/media/catalog_file/8b6/f9c/0e6/128-22001_1.jpeg

Bolt On toolholder for boring bars, clamping capacity ø40mm, center height 30mm, bolt grid 45x80

128-22001Made to order

This axial bolt mount toolholder fits to lathes equipped with BOT turret with 45x80 bolt grid, incl. HAAS SL/ST/DS(sub spindle) series and Okuma LB series. It holds tools with round shunk of ⌀40mm for ID turning and boring. Tools with other shunk ⌀ are possible to hold with reduction sleeves. Toolholder has 2 external coolant channels. CNCmarket.ca provides 12 months of warranty and free shipping within Canada.

CA$232.98

Std. delivery incl. Crossed-out price = offline retail
