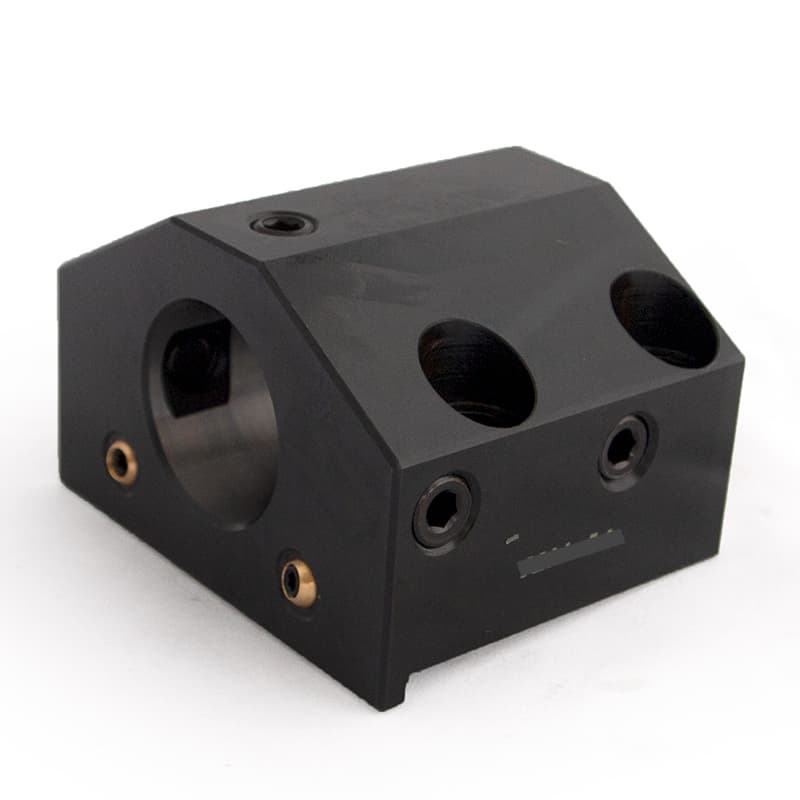

40 mm Dia. Boring Bar & Indexable Drill Block, BOT 45 x 80 mm, 30 mm Centre Height

128-22005Archive

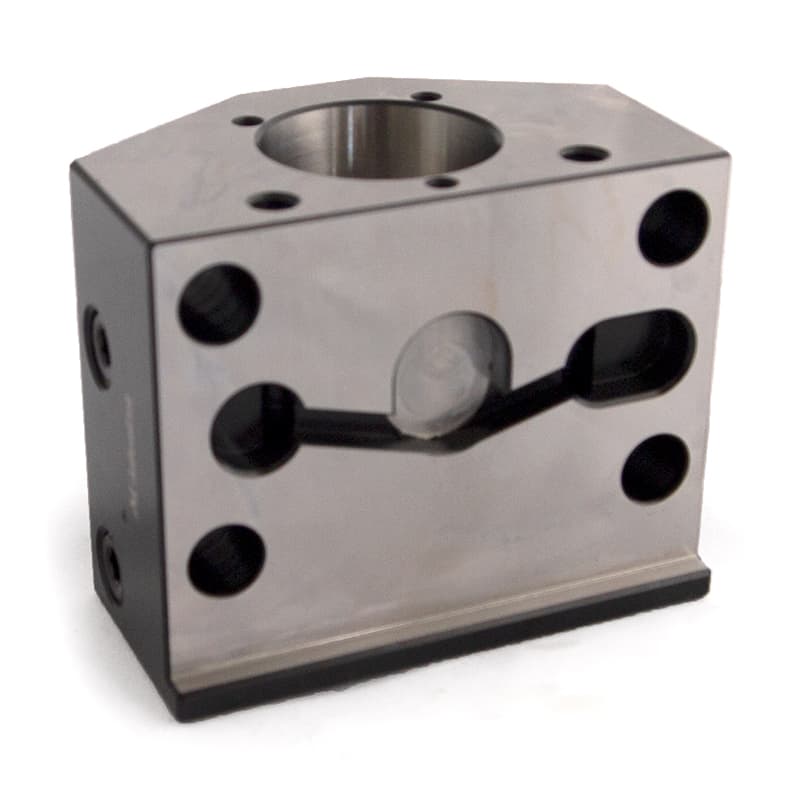

Two external coolant channels. Internal coolant supply to the drill body through the cover. Reducer sleeves can be used for smaller shank diameters. Fits Okuma LB15, LB25, LB300 and HAAS SL, ST, DS series.

Product Attributes

Technical Description

Reviews

Holder Style

Boring Bars / Indexable Drills

Turret Type

Tool Diameter, mm

Unit System

Metric

Brand

EASYCUT

Item type

Lathe Tool Holders

Turret Type:BOT 45x80

Technical Description

Ideal for complex machining tasks, this BOT 45x80mm tool holder (SKU: 128-22005) offers robust construction and exceptional precision. The universal CNC lathe boring bar and index drills tool holder is one of the most popular and in-demand types of holders. This tool holder is designed for tools with a cylindrical shank, particularly boring bars or index drills bodies, thanks to the additional positioning screw. The BOT-type holder is positioned on the turret edge, with the axis of the central hole parallel to the spindle rotation axis. The central hole diameter is 40mm, and the height from the turret edge to the hole axis is 30mm. Reducer sleeves can be used for tools with smaller diameters This boring bar holder for tool turret is compatible with the following machine tool models: OKUMA LB15 / LB25 / LB15II / LB300 and HAAS SL20 - SL30 / ST-20 / ST-25 / ST-30 / ST-35 / DS-30, equipped with a BOT-type turret featuring a 4-hole 45mm x 80mm bolt pattern. It is specifically designed to excel in performance-critical environments.

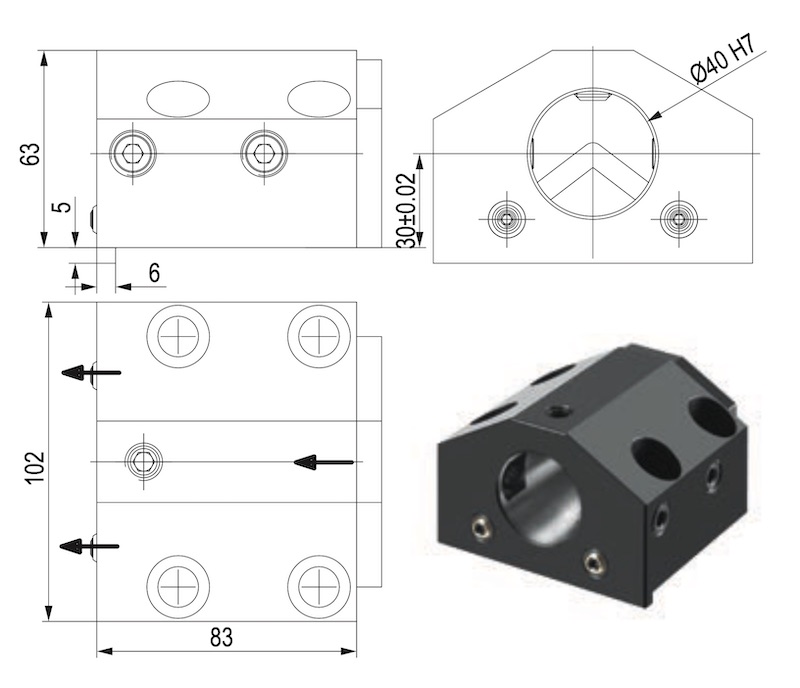

Details, mm:

128-22005 Details, mm
