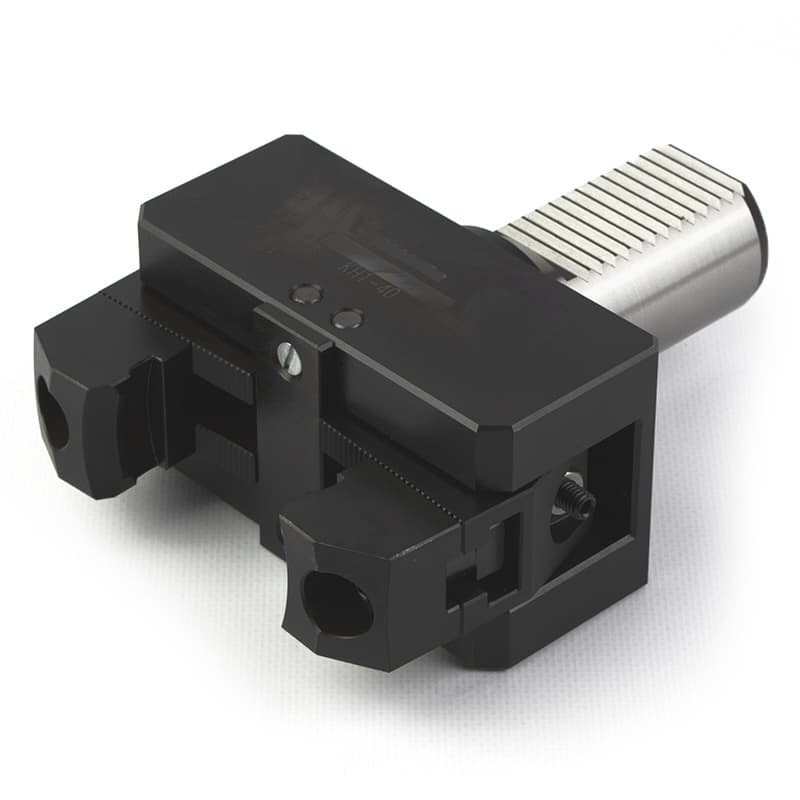

6-110 mm Dia. Mechanical Bar Puller, VDI40

H140KRunning out of stock

Spring-loaded interchangeable jaws, set 3-5 mm below bar diameter. Fits VDI40 turrets with the tool slot on the turret face.

CA$1,268.94 excl. taxes

Retail price as of 09.01.2026

1 pcs.stock Calgary (T2C 1Z6)

Product Attributes

Technical Description

Reviews

Holder Style

Bar Puller

Turret Type

Unit System

Metric

Brand

EASYCUT

Item type

Lathe Tool Holders

Turret Type:VDI40 Classic

Technical Description

A bar puller is located within the machine’s working zone and grips the remaining part of the bar stock after a cut. It is mounted using a tool holder or inserted into the tool turret slot. The pulling action is achieved through the movement of the turret.

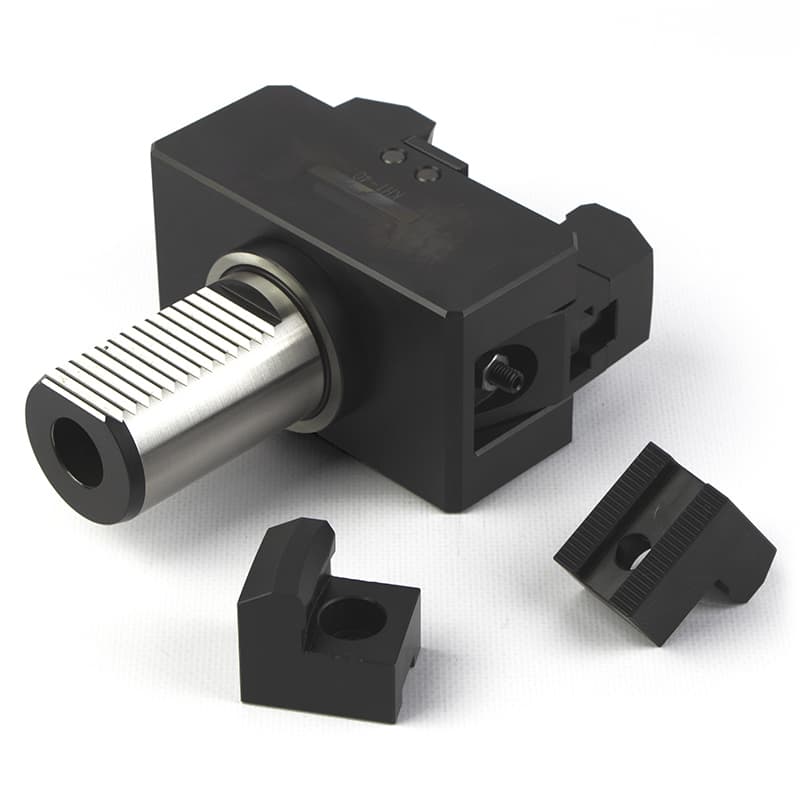

Bar pullers come in various designs, but the most common are devices with spring-loaded interchangeable jaws. These jaws are set so that the distance between them is 3-5 mm smaller than the bar’s diameter. The bar puller grips the bar clamped in the chuck, after which the chuck jaws release, and the puller moves the bar along the Z-axis of the CNC lathe.

This tool is compatible with any VDI40 turret with tool slots located on the face.

How it works?

Self-centering chuck stops
After positioning the jaws 3-5mm less than the measure of the bar diameter, clamp the bar
Self-centering chuck opens
Bar puller pulls the bar with the lathe turret movement
Self-centering chuck clamps the bar in a new position
Bar puller releases the bar Machining continues

VDI40 bar puller scheme of work 3-4 s 5-6

Details, mm:

H140K details

Design / Parts of the bar puller:
