CAT40 (CT40) Ø 3/4" (0.75") end mill holder, weldon x 1.75" gage length, G2.5 balancing

Made to order

https://d2cl4d8boa23l5.cloudfront.net/storage/media/catalog_file/3c4/25e/a0e/em075t40ih1-75.jpg

https://d2cl4d8boa23l5.cloudfront.net/storage/media/catalog_file/f09/195/c9f/em075t40ih1-75_1.jpg

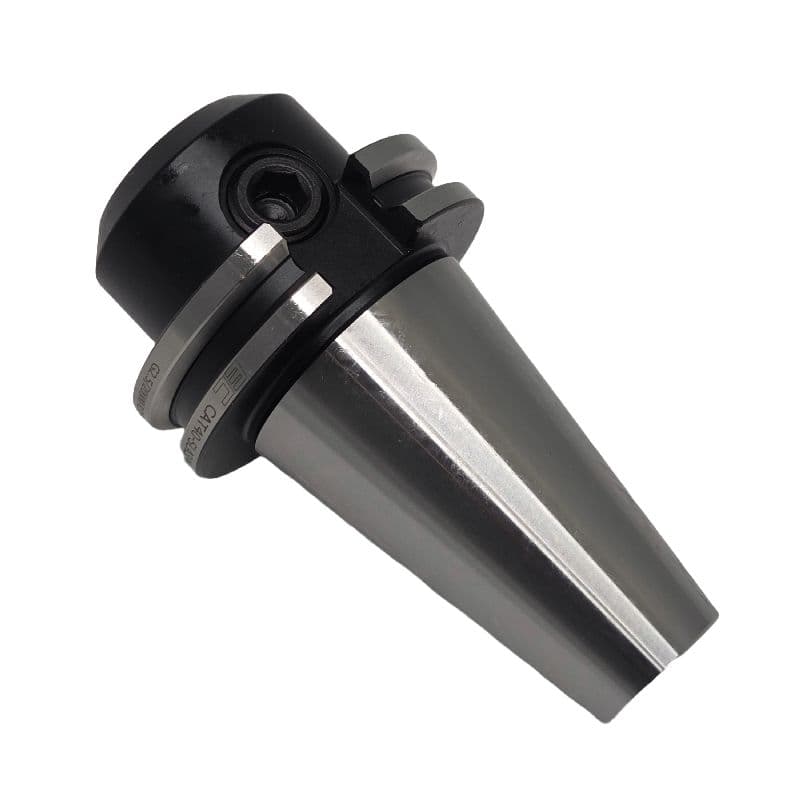

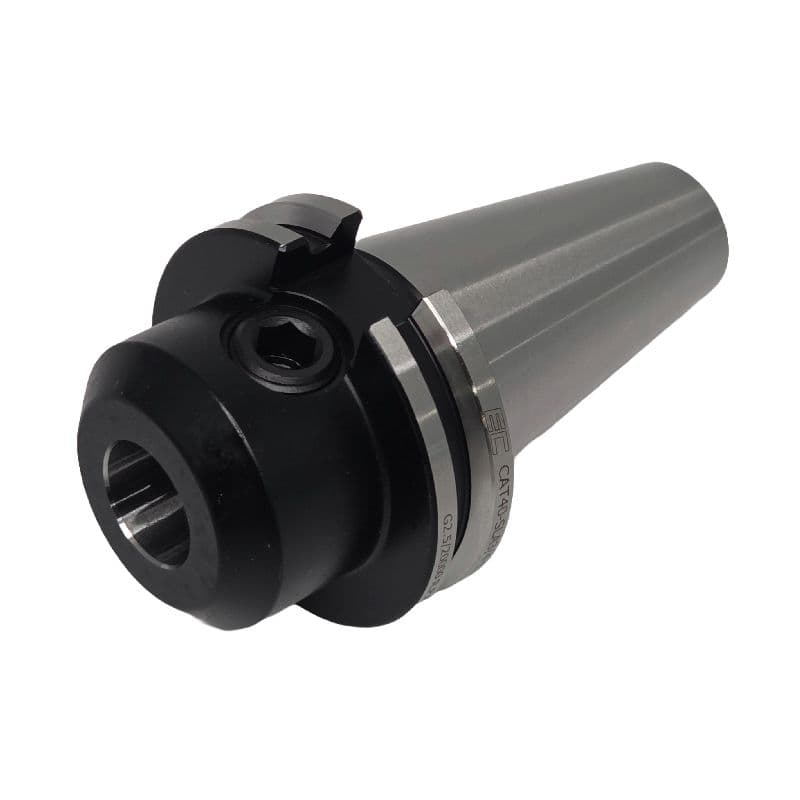

CAT40 (CT40) Ø 3/4" (0.75") end mill holder, weldon x 1.75" gage length, G2.5 balancing

EM075T40iH1-75Made to order

Compact CAT40 end mill holder designed for Ø 3/4” (0.75”) tools, offering precision and stability in machining. Pull stud thread is 5/8-11. Free delivery across Canada included!

CA$75.18

Std. delivery incl. Crossed-out price = offline retail

Product Attributes

Technical Description

Reviews

Mill Spindle Standard

CAT40 (CT40)

Mill holder type

End Mill (Weldon)

Tool Diameter, Inch

3/4 (0.75)

Brand

EASYCUT

Item type

Milling Tool Holders

Technical Description

The EM075T40iH1-75 is a premium CAT40 (CT40) end mill holder built to ANSI B5.50 standards for high precision and reliability. Designed for Ø 3/4” (0.75”) end mills, it features a Weldon-style clamping mechanism to ensure secure tool retention and minimize vibration during machining.

With a 1.75-inch gage length, it is optimized for applications requiring reduced tool overhang, enhancing rigidity and accuracy. Made from alloyed case-hardened steel and finished with a durable blackened and bright surface, this toolholder delivers exceptional strength and wear resistance. Balanced to G2.5 at 25,000 RPM, it performs smoothly at high speeds. Additional features include a taper tolerance of AT3, a hardness range of HRC 58-62, and a carbon depth of 0.8±0.2mm for long-lasting performance. Surface roughness of Ra 0.005mm ensures outstanding precision, and AD cooling capability supports efficient operations.

Details:

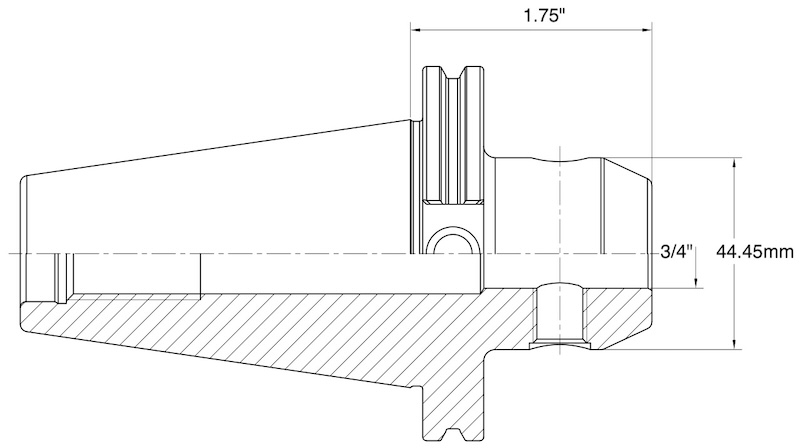

EM075T40iH1-75 Drawing
